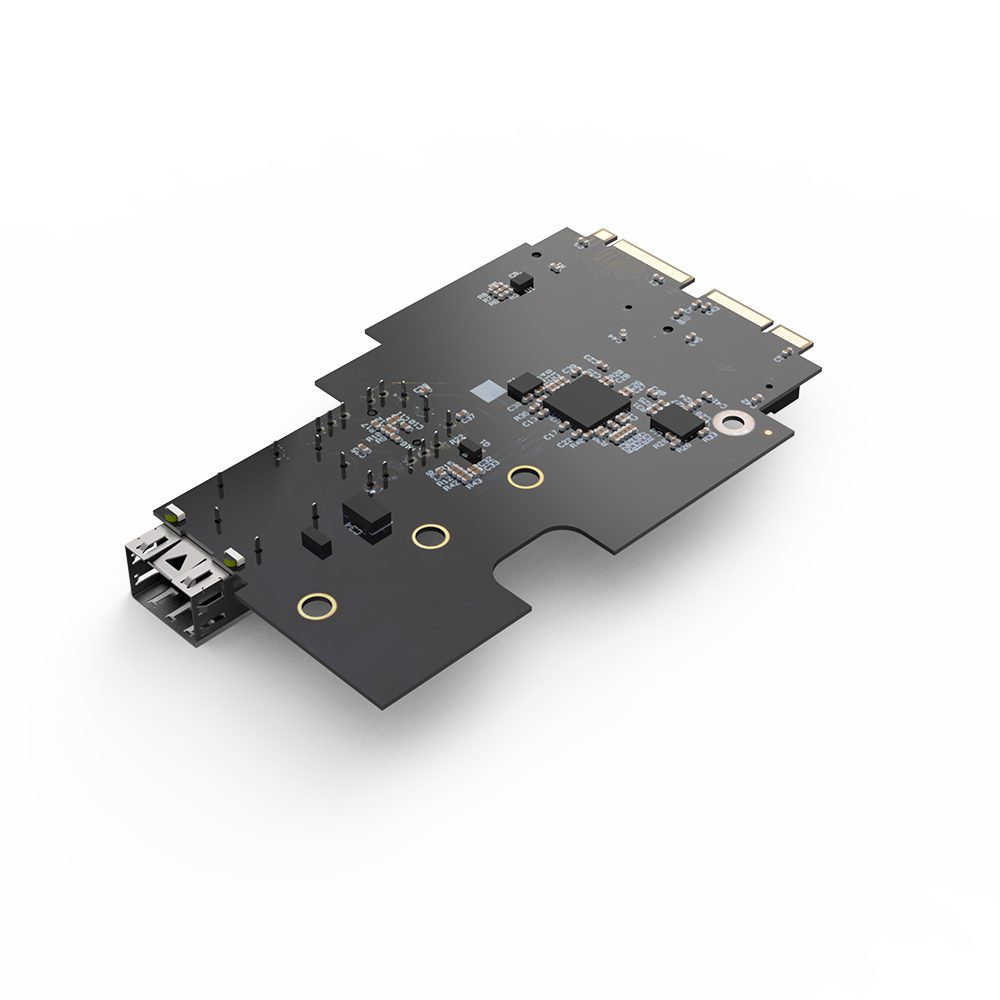

FC-OPLN FACET-Card (Optical LAN)

Type: Wide FACET Card

Technical documentation: http://www.fit-pc.com/wiki/index.php/Fitlet2_FACET_Cards#FC-OPLN

Properties:

• Supported 1Gbps SFP/SFP+ transceiver
• LEDs: LAN SFP link/activity indication
  • Right LED: continuous green=link | blinking green=activity
  • Left LED: green=100 Mbps link |amber=1 Gbps link
• M.2 sockets: M.2 Key-M: 2242/2260/2280 for SATA SSD
• M.2 Key-E: 2230 (usually used for WiFi & BT module)
• Ethernet controller: Intel I210IS GbE Controller
• PCIe interface: PCIe v2.1 (2.5 GT/s) x1
• Integrated Non-Volatile Memory
• Platform Power Efficiency: IEEE 802.3az Energy Efficient Ethernet (EEE)
• Proxy: ECMA-393 and Windows logo for proxy offload
• Audio-video bridging: IEEE 1588/802.1AS precision time synchronization
• IEEE 802.1Qav traffic shaper (with software extensions)
• Jumbo frames
• Interrupt moderation, VLAN support, IP checksum offload
• RSS and MSI-X to lower CPU utilization in multi-core systems
• Advanced cable diagnostics, auto MDI-X
• ECC – error correcting memory in packet buffers
