SBC-TI22
SBC-TI22

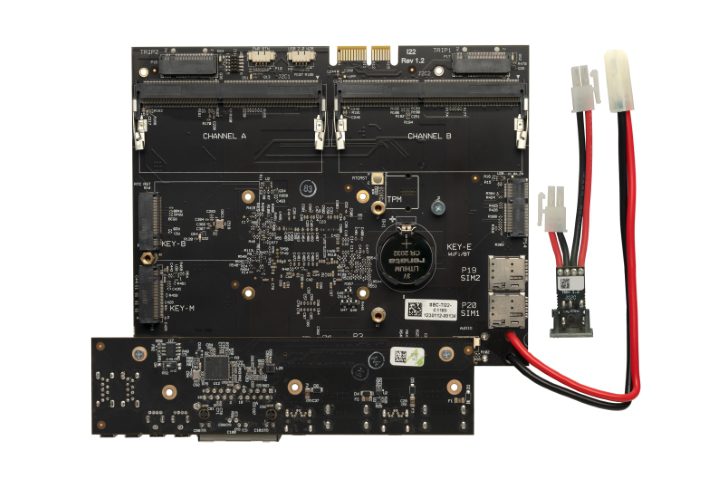

SBC-TI22 is the motherboard of Tensor-I22.
It is based on Intel Core i5 or i7, Gen. 11 Tiger Lake – UP3 processor.
SBC-TI22 is accompanied by EB-TI22A, a back-panel interface module.
Including 4 expansion interfaces for use by Tensor TEL modules, it can be customised for various applications, including industrial automation, AI edge computing, robotics control, network security and monitoring, retail, media, and more.
Main features
- Intel® Tiger Lake 11th Generation Core™ processor
- Up to 4 x Gigabit Ethernet ports
- Up to 3 x NVMe/SATA storage devices
- Up to 12 x USB 3.1 / 2.0 ports
- Optional Wi-Fi/BT + LTE/5G modem
- Up to 12 x RS-232 / RS-485 or 40+ isolated GPIOs
- 12V-56V DC power input
- Size with EB:Â 147 x 166 mm
- 5-year warranty
The added value
Long-term availability with an extra-long warranty
C-LAB’s computers and modules are guaranteed to be available for at least 15 years from platform launch.
With this longevity, you can count on us for the long run.
Proud of our products, we provide a 5-year warranty as standard, reinforcing our commitment to guaranteeing quality and customer satisfaction over time.
Full-scale customisation
C-LAB offers a wide range of special customisation services so that the computers units can be shipped ready-to-use and according to customer’s needs:
- SMT-level hardware configuration
- Custom operation system imaging
- Customised BIOS menu default options
- Branding: custom splash screen, company logo, documentation, labelling and packaging
- ZTP (Zero-Touch Provisioning)
Direct engineering support
From pre-sale consultations to post-sale engineering support, direct technical assistance is provided by the product’s development engineers. This streamlined support system ensures efficient and effective resolution of technical challenges, enhancing the customer’s project design flow.
CPU
Intel 11th Gen. Core SoC (Tiger Lake – UP3):
- Intel Core i7-1185G7E (4 Core, 8 Threads | Base: 1.8/2.8 GHz, Boost: 4.4 GHz | 12 MB Cache | TDP: 15/28 W1)
- Intel Core i5-1145G7E (4 Core, 8 Threads | Base: 1.5/2.6 GHz, Boost: 4.1 GHz | 8 MB Cache | TDP: 15/28 W1)
- Intel Celeron 6305E (2 Cores, 2 Threads | Base: 1.8 GHz | 4 MB Cache | TDP: 15 W)
CPU frequency is preset to match cooling capacity and target case temperature.
Owner can adjust this setting in BIOS.
1Â For 28W CPU operation, EW30-ECR20 housing is recommended (300 x 200 x 45.3 mm)
Memory
Up to 64GB, 2 x SO-DIMM DDR4, up to 3200MT/s
Display
4 independent displays
2 x HDMI 1.4b (up to 3840 x 2160 @ 30Hz)
2 x mini-DP 1.2 (up to 4096 x 2160 @ 60Hz) Dual mode
Storage
Up to 3 storage devices
On-board: M.2 key-M NVMe PCIe x4 or SATA, up to 2280
- Optional FT.F-M2NVME: additional NVMe / SATA on M.2 Key-M
- Optional FT.T-SATA1: additional 2.5″ SATA SSD/HDD
Networking and Wireless
LAN
On-board: dual Gbit Ethernet (Intel I219 + Intel I210)
- Optional FT.C-LAN2: additional 2 x 1 Gigabit Ethernet on RJ45
- Optional FT.CB-LAN10G2: additional 2 x 10 Gigabit Ethernet on RJ45
- Optional FT.W-OPLN2: additional 2 x 1 Gigabit Ethernet on SFP+ for optical LAN
- Optional FT.U-POE2: additional 2 x 1 Gigabit Ethernet on RJ45 with PoE source, up to 15W each
Wireless LAN Wi-Fi 6E + BT 5.2
M.2 Key-E for Wi-Fi/BT module
Cellular communication LTE/4G
M.2 Key-B for LTE/5G modem
On-board Nano-SIM socket.
I/O
USB
- Optional FT.ED-USB3PCIV4: Up to 8 x additional USB 3.1 on USB Type-A
- Optional FT.EC-USB2V4: Up to 8 x additional USB 2.0 on USB Type-A
Audio
On-board: Audio over HDMI and DP
Optional analog output, analog input on 3.5 mm jacks
Serial port / GPIO / CAN bus
Multiple Serial ports and GPIOs can be added to Tensor-I22 using TEL extension modules:
- Up to 20 isolated RS-232 / RS-485 on DB9
- Up to 40 isolated GPIOs on terminal blocks
- Up to 9 isolated CAN bus ports on DB9
TPM
Trusted Plaftorm Module
On-board: Intel PTT
Optional TPM 2.0 on a discrete module
Extensions TEL modules
Tensor-I22 has a wide range of common interfaces on the back panel module and on the motherboard. Using TEL extension modules, additional interfaces can be installed to adjust the Tensor-I22 to any application.Â
* The TELs are connected to the SBC-TI22 using a soft connection, so need an additional mounting solution.
Contact us for additional details about possible extension TEL module combinations.
