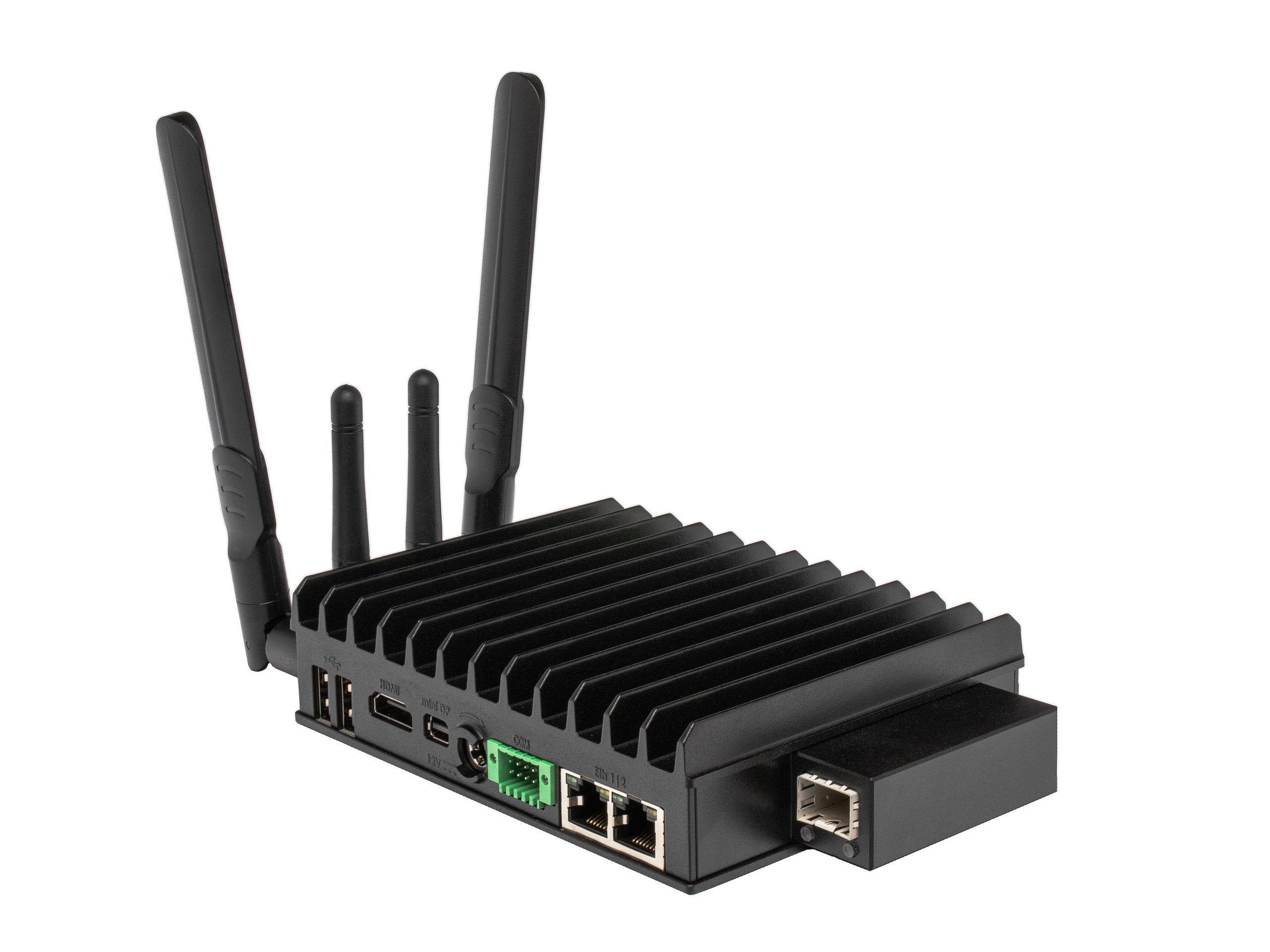

fitlet3 is a miniature x86 industrial computer. Optimized as industrial IoT gateway and edge computing alpplications. Its multiple connectivity options and industrial interfaces make it a very capable computer in a very small form factor.Â
Various extension FACET modules give additional flexibility and allow fitlet3 to connect any industrial system, sensor or machine to the cloud.
fitlet3 is geat as an edge-AI device with a high-speed interface and enhanced heat dissipation for optional AI accelerators.
Main features
- Intel® Elkhart Lake x6000E Atom processor
- Up to 4 x Gigabit Ethernet ports
- Up to 2 x NVMe/SATA storage devices
- 6 x USB 3.1 / 2.0 ports
- Optional Wi-Fi/BT + LTE/5G modem
- Optional isolated serial + GPIO ports
- 9V-42V DC power input
- Side/bottom VESA / DIN Rail mounting
- Rugged, MIL-STD-810G
- 133 x 100 x 34 mm
- 5-year warranty

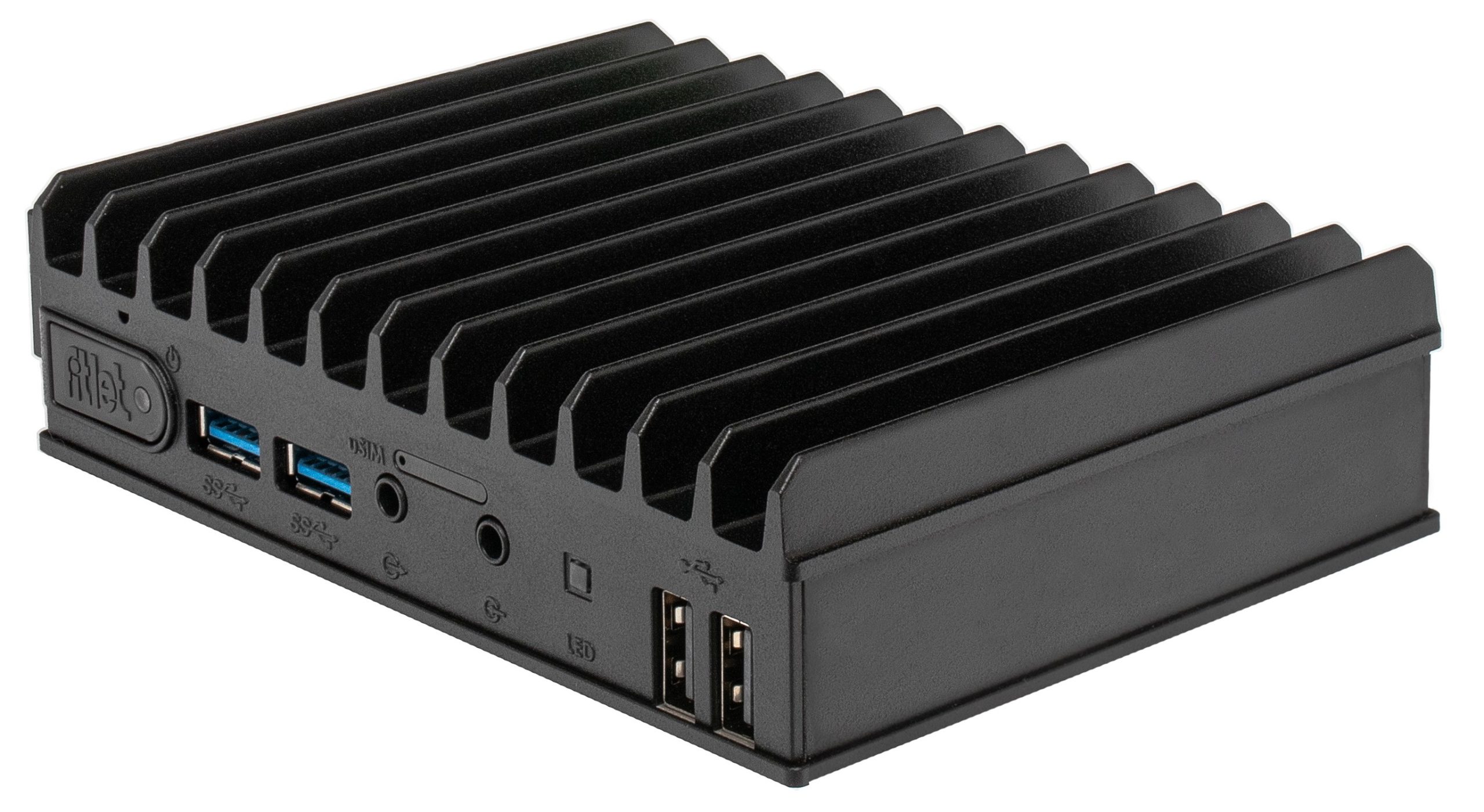

Compact and capable
Just under 133mm x 100mm x 35mm, with advanced heat transfer and dissipation from internal components.
Rigid, durable, fanless housing for harsh environments with MIL-STD-810G standard.
Multiple interfaces
In addition to 6 USB ports, HDMI + mini DP, analog audio, COM port + GPIOs and dual 1GbE on RJ45, fitlet3 has optional FACET extension cards for additional interfaces:
- Dual COM ports (RS-232 / RS-485)
- Dual CAN bus
- Dual 1GbE on RJ45
- 1GbE on RJ45 with PoE device capabilities
- 1GbE on SFP+ for optical LAN
Fully compatible with industrial applications
fitlet3 is a perfect fit for most industrial IoT gateway and industrial computer needs:
- Thanks to rigorous component selection and high-quality mechanical design, fitlet3 can work flawlessly and continuously in harsh industrial environments with ambient temperatures of -40°C to +85°C.
- In addition to the optional interfaces on the FACET modules, fitlet3 is equipped with a terminal block with RS-232 or RS-485 full/half duplex and 2+2 GPI and GPO interfaces.
Ready for AI
fitlet3 was designed with exceptional care for Edge-AI applications.
With enhanced heat dissipation and a high-speed interface for up to two Hailo-8 AI acceleration modules, fitlet3 is a strong Edge-AI computer with up to 52 TOPS.
Hailo-8 was tested and verified on fitlet3 with up to four video streams (1080p, 30fps) simultaneously for AI inference.
One or two Hailo-8 AI accelerators can be pre-installed on fitlet3 for a ready-to-go Edge-AI computer.
Additional enclosure possibilities
fitlet3 has two additional enclosure variants to make it suitable wherever needed:
Deep bottom cover for a 2.5" storage device:
To allow use of a standard 2.5″ SSD or HDD with a SATA interface, the underside of the enclosure can be lowered to allow the necessary space.
Industrial top cover for conduction heat dissipation:Â
fitlet3 can be thermally coupled to a heat conductive surface such as a metal cabinet by using the flat top cover, enabling heat to be transferred away from the device.
The added value
Long-term availability with an extra-long warranty
C-LAB’s fanless industrial computers are guaranteed to be available for at least 15 years from platform
launch. With this longevity, you can count on us for the long run.
Proud of our products, we provide a 5-year warranty as standard, reinforcing our commitment to guaranteeing quality and customer satisfaction over time.
Full-scale customisation
C-LAB offers a wide range of special customisation services so that computers can be shipped ready-to-use and according to customer’s needs:
- SMT-level hardware configuration
- Custom operation system imaging
- Customised BIOS menu default options
- Branding: custom splash screen, company logo, documentation, labelling and packaging
- ZTP (Zero-Touch Provisioning)
Direct engineering support
From pre-sale consultations to post-sale engineering support, direct technical assistance is provided by the product’s development engineers. This streamlined support system ensures efficient and effective resolution of technical challenges, enhancing the customer’s project design flow.
CPU
Intel Elkhart Lake x6000E Atom processor:
- Intel Atom x6425E (4 Core | Base: 2.0 GHz, Boost: 3.0 GHz | 1.5 MB Cache | TDP: 12 W)
- Intel Celeron J6413Â (4 Core | Base: 1.8 GHz, Boost: 3.0 GHz | 1.5 MB Cache | TDP: 10 W)
- Intel Atom x6211E (2 Core | Base: 1.3 GHz, Boost: 3.0 GHz | 1.5 MB Cache | TDP: 6 W)
Memory
Up to 32GB, SO-DIMM DDR4, up to 3200MT/s
Display
2 independent displays
HDMI 1.4b (up to 3840 x 2160 @ 30Hz)
mini-DP 1.2 (up to 4096 x 2160 @ 60Hz) Dual mode (can be daisy-chained for a third independent display in supporting monitors)
Storage
Up to 2 storage devices
On-board:Â
- Â M.2 Key-M NVMe PCIe x4 or SATA, up to 2280
- Â M.2 Key-B SATA III, up to 2260 (for M.2 Key-B+M SATA module)
Optional: 2.5″ SATA SSD/HDD (requires deep bottom cover)
Networking and Wireless
LAN
On-board: 2x 1 Gbit Ethernet on RJ45
- Optional FC3-LAN: additional 2 x 1 Gigabit Ethernet on RJ45
- Optional FC3-POED: additional 1 x 1 Gigabit Ethernet on RJ45, with PoE for powering the fitlet3 over the Ethernet
- Optional FC3-OPLN: additional 2 x 1 Gigabit Ethernet on SFP+ for optical LAN
Wireless LAN Wi-Fi 6E + BT 5.2
M.2 Key-E for Wi-Fi/BT module
Cellular communication LTE/4G
M.2 Key-B for LTE/5G modem
On-board Nano-SIM socket with external access
I/O
USB
2 x USB 3.1 on USB Type-A
4 x USB 2.0 on USB Type-A
Audio
On-board: Audio over HDMI and DP
Optional analog output, analog input on 3.5 mm jacks
Serial port/ GPIO / CAN bus
Optional terminal block with isolated industrial interfaces:
- RS-232 or RS-485 full/half duplex
- 2 x GPI (isolated digital input)
- 2 x GPO (isolated digital output)
TPM
Trusted Platform Module
On-board: Intel PTT
Optional TPM 2.0 on a discrete module
FACET extension modules
fitlet3 has a few optional FACET extensions for additional interfaces on the side panel:
