EdgeAI-ORN
EdgeAI-ORN

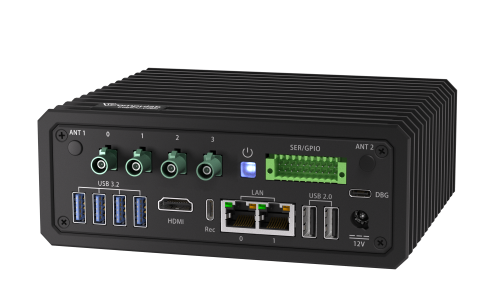

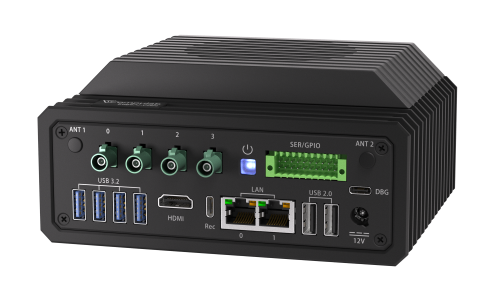

EdgeAI-ORN is a dedicated Edge AI computer, designed to meet the performance, connectivity, and reliability demands of real-world AI deployments. Powered by NVIDIA® Jetson™ Orin Nano and Orin NX modules, EdgeAI-ORN delivers up to 157 TOPS of AI performance in a rugged, compact enclosure.
Video input can be received from various interfaces, including PoE Ethernet, USB 3.2, GMSL2/FPD-Link IV serial with PoC, and MIPI CSI-2.
With its isolated COM port, CAN bus, and GPIOs, EdgeAI-ORN seamlessly integrates into industrial systems.
Turnkey AI model integration and deployment services
Main features
- NVIDIA® Jetson™ Orin Nano or Orin NX
- 4 x video in: 2.5GbE PoE / GMSL2 / FPD Link IV / USB 3.2
- Isolated RS-232/485 + CAN bus + GPIOs
- Optional out-of-band management module
- MIL-STD-810G, -20°C to 75°C working temp.
- 5-year warranty
- Accelerated AI services – PoC to full deployment services

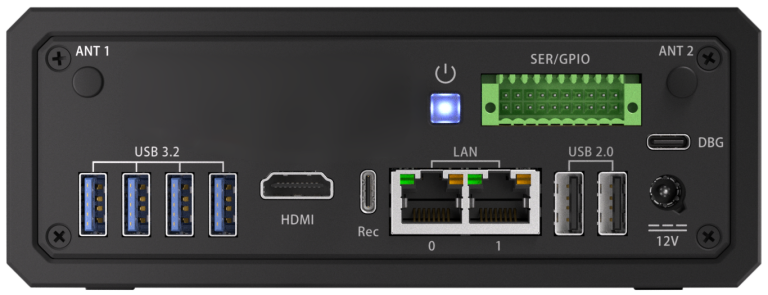

Multiple camera interfaces
EdgeAI-ORN is engineered to be a perfect match to every enviroment, for high-throughput camera input:
USB 3.2 Gen. 2:
EdgeAI-ORN includes four USB 3.2 ports by default, allowing for the connection of up to four USB cameras with a data transfer rate of up to 10Gbps each.2.5 GbE with PoE:

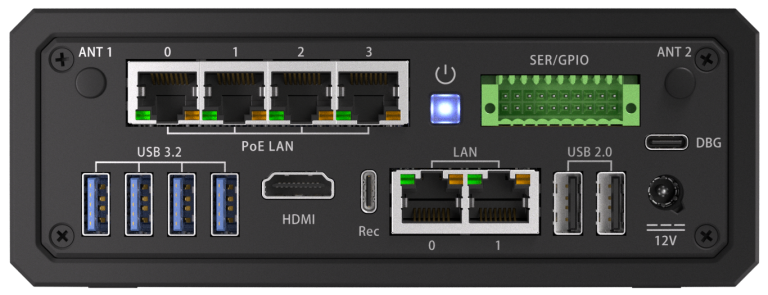

For connection of up to 4 high-throughput PoE cameras with 15W per port.GMSL2:

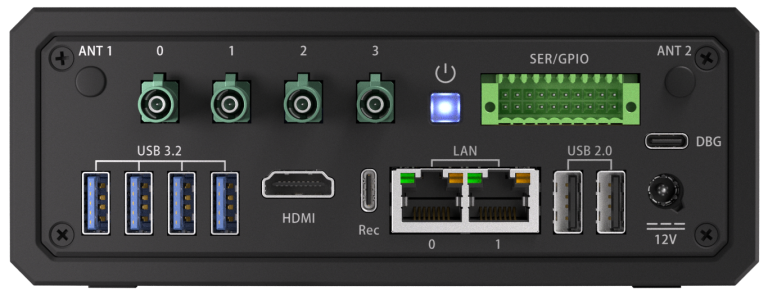

4-port deserializer with PoC for up to four GMSL2 cameras.FPD Link IV:
4-port deserializer with PoC for up to four FPD Link cameras.MIPI CSI-2:
4-lane MIPI CSI-2 interface with a standard Jetson eval. board pin-out for up to four cameras.

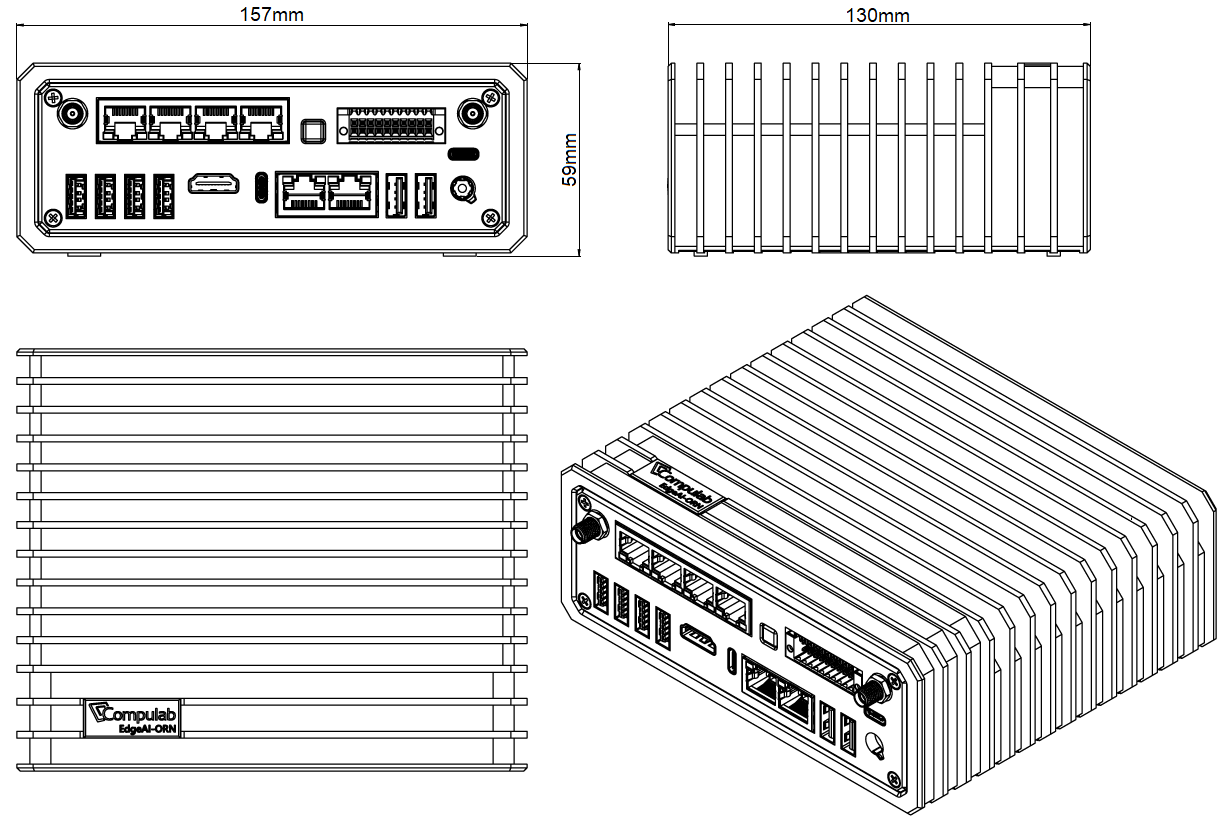

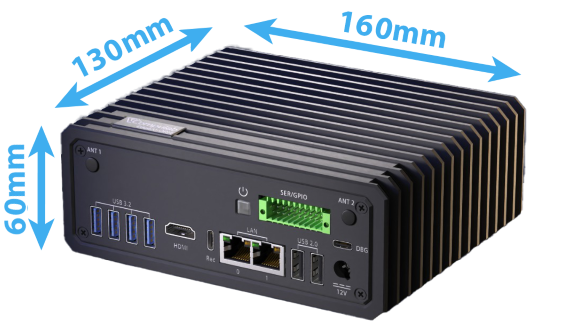

Compact form, exceptional capability
Despite its powerful AI engine and rich I/O options, EdgeAI‑ORN is designed in a remarkably small footprint. It delivers enterprise‑grade performance and advanced thermal engineering in a size that fits seamlessly into space‑constrained installations.

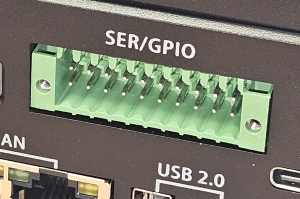

Built-in industrial interfaces

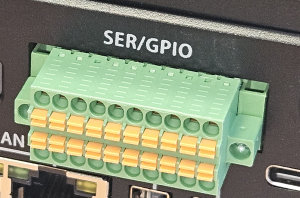

Using an industry-standard terminal block, EdgeAI-ORN can be interfaced using isolated interfaces:
- 2 x input + 2 x output GPIO signals
- RS-232 or RS-485/422 full/half duplex
- CAN bus with CAN FD capability

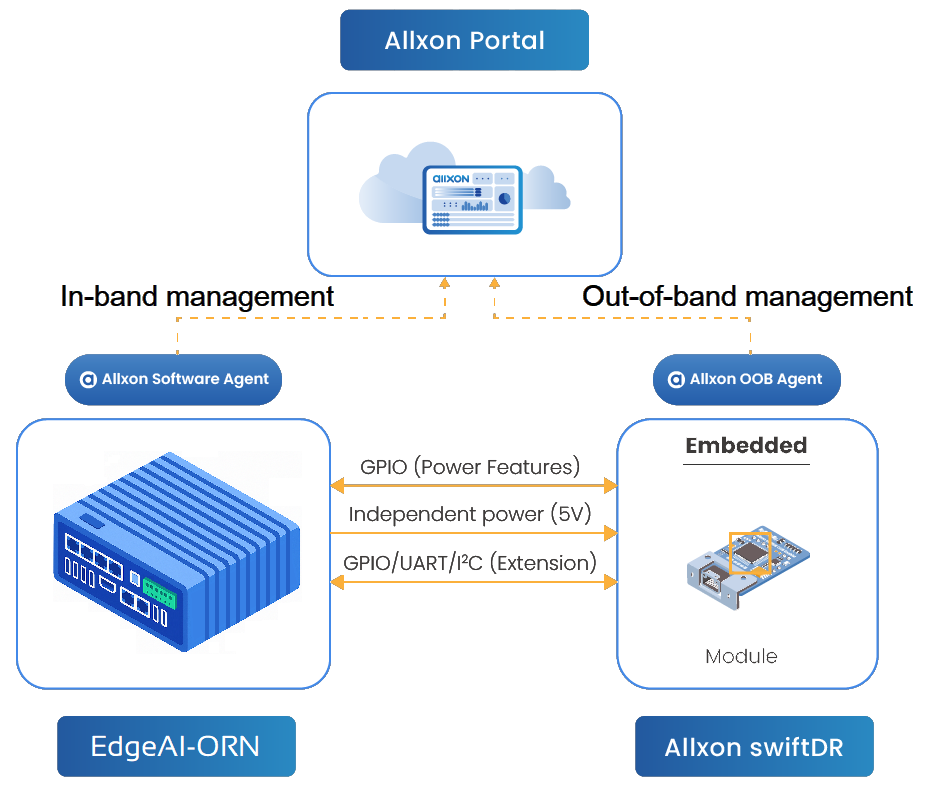

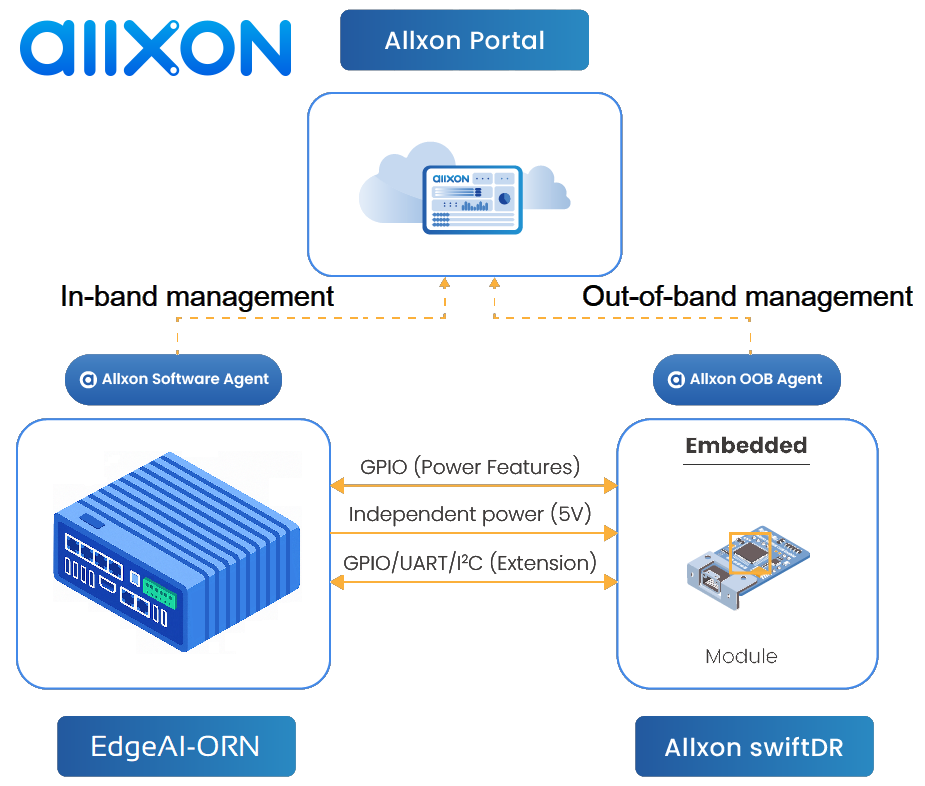

Allxon OOB management – Enhancing reliability and operational continuity
EdgeAI-ORN can be equipped with the Allxon OOB Enabler-Bolt, an out‑of‑band management module, as a powerful option that elevates reliability and operational control.
Through a dedicated management channel, the Allxon OOB Enabler-Bolt module enables remote power cycling, system recovery, and diagnostics even when the main operating system is unresponsive. This means:
- Swift recovery during critical failures without needing on‑site intervention
- Reduced downtime and operational costs thanks to proactive monitoring
- Enhanced security and compliance by supporting remote updates and controlled access
- Improved sustainability by cutting down on maintenance trips and energy use
By integrating this proven OOB solution directly into the EdgeAI‑ORN platform, you gain a single, unified device that combines advanced AI computing with best‑in‑class remote management capabilities significantly strengthening your overall edge deployment strategy.
Enhanced heat dissipation with active air flow
For applications that push the Jetson module to its full AI capability (up to 40W), EdgeAI‑ORN supports an optional external fan. This add‑on significantly enhances heat dissipation, ensuring stable operation and sustained peak performance even under the most demanding workloads.
Passive heat dissipation
EdgeAI-ORN employs a full-coverage heatsink design that extends across the top and sides. This expansive thermal interface delivers outstanding heat dissipation, enabling quiet, maintenance‑free operation without compromising AI performance.

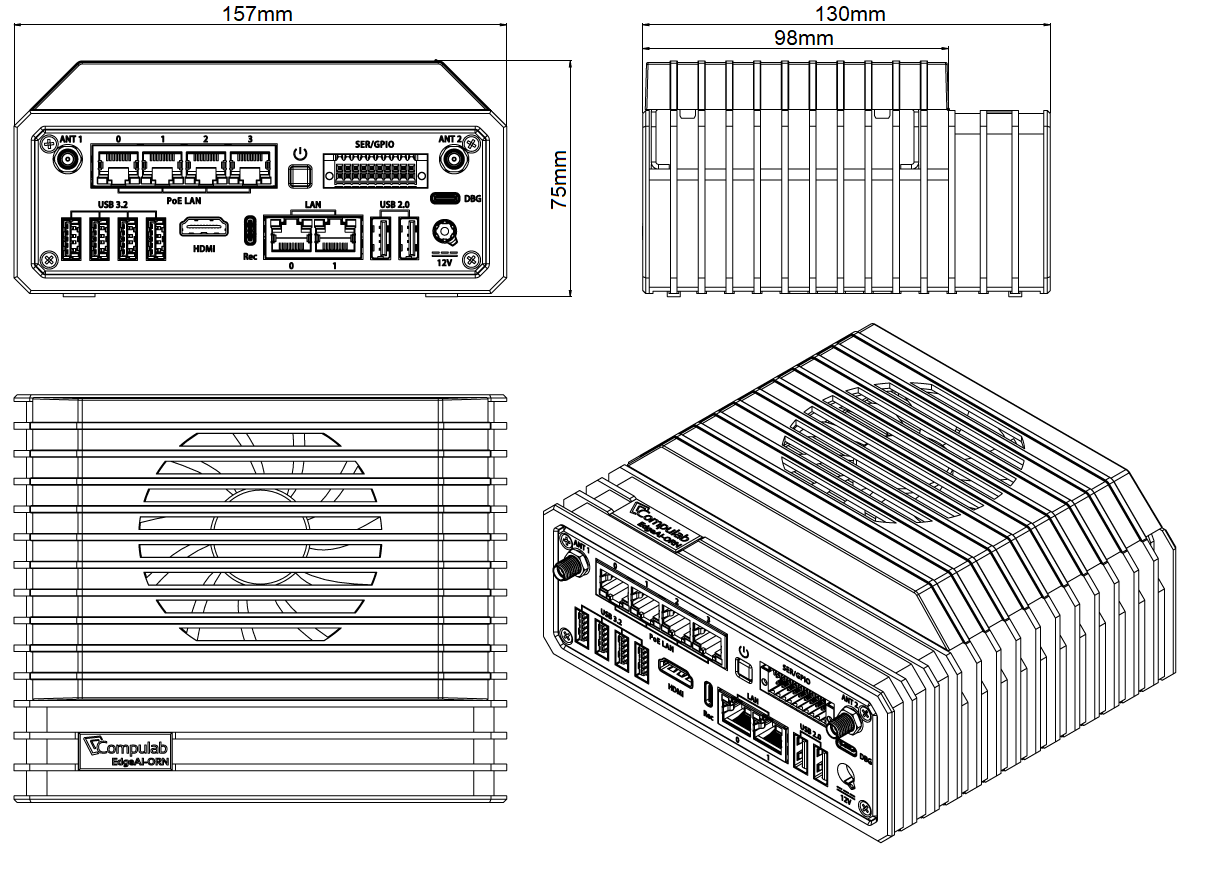

Active heat dissipation
Designed with flexibility in mind, EdgeAI‑ORN offers an active cooling configuration featuring an externally mounted fan. This enhanced thermal solution unlocks the module’s full potential – up to 40W of AI compute power – while ensuring thermal stability in demanding industrial and edge environments.
The added value
Long-term availability with an extra-long warranty
C-LAB’s edge computers are guaranteed to be available for at least as long as the platform is available.
With this longevity you can count on us for the long run.
Proud of our products we provide a 5-year warranty as standard, reinforcing our commitment to guaranteeing quality and customer satisfaction over time.
Full-scale customisation
C-LAB offers a wide range of special customisation services so that computers can be shipped ready-to-use and according to customer’s needs:
- SMT-level hardware configuration
- Custom operation system imaging
- Customised BIOS menu default options
- Branding: custom splash screen, company logo, documentation, labelling and packaging
- ZTP (Zero-Touch Provisioning)
Direct engineering support
From pre-sale consultations to post-sale engineering support, direct technical assistance is provided by the product’s development engineers. This streamlined support system ensures efficient and effective resolution of technical challenges, enhancing the customer’s project design flow.

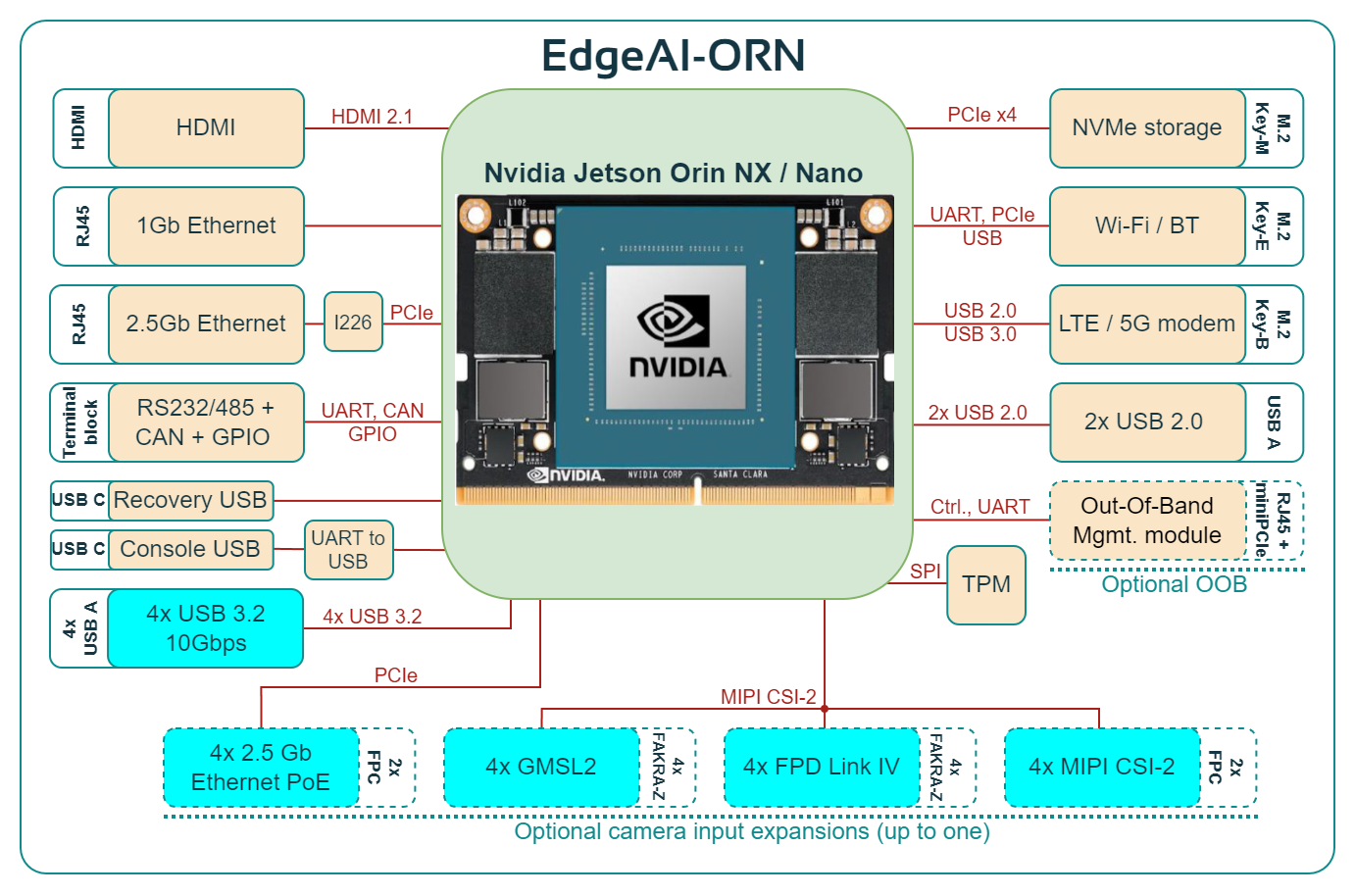

Compute module
NVIDIA Jetson™ Orin Nano and Orin NX:
- Jetson™ Orin NX 16GB (Up to 157 TOPS | 16GB LPDDR5 | 10W / 15W / 25W / 40W)
- Jetson™ Orin NX 8GB (Up to 117 TOPS | 8GB LPDDR5 | 10W / 15W / 25W / 40W)
- Jetson™ Orin Nano 8GB (Up to 67 TOPS | 8GB LPDDR5 | 7W / 15W / 25W)
- Jetson™ Orin Nano 4GB (Up to 34 TOPS | 4GB LPDDR5 | 7W / 10W / 25W)
Memory
On-board the Jetson module, 16GB, 8GB or 4GB LPDDR5
Display
HDMI 2.1 (up to 8K @ 30Hz)
Storage
M.2 Key-M NVMe 4-lane PCIe Gen. 4 (NX) or Gen. 3 (Nano), up to 2280
Including integrated heatsink
Camera input interfaces
LAN
- Optional PoE input expansion: 4 x 2.5Gbps Ethernet with PoE PSE and power delivery up to 15.4W per port
- On-board Gigabit Ethernet + 2.5 Gigabit Ethernet ports
USB
- Four USB 3.2 10Gbps (20Gbps in total)
Deserializer
- Optional GMSL2 input expansion: 4 x GMSL2 deserializer inputs on FAKRA Z, with PoC power delivery
- Optional FPD Link IV input expansion: 4 x FPD Link IV deserializer inputs on FAKRA Z, with PoC power delivery
Out-of-band management (OOB)
Optional Allxon Bolt module with 100Mb Ethernet and mini-PCIe for OOB modem.
Interfaces to the module include Debug UART, power control and power monitoring.
Networking and Wireless
LAN
- Optional PoE input expansion: 4 x 2.5Gbps Ethernet with PoE PSE and power delivery up to 15.4W per port
- On-board Gigabit Ethernet + 2.5 Gigabit Ethernet ports
Wireless LAN Wi-Fi 6E + BT 5.2
M.2 Key-E for Wi-Fi/BT module
Cellular communication LTE/4G
M.2 Key-B for LTE/5G modem
On-board Nano-SIM socket with external access
I/O
USB
2 x USB 3.2 10Gbps on USB Type-A
2 x USB 2.0 on USB Type-A
Serial port/ GPIO / CAN bus
Terminal block with isolated industrial interfaces:
- RS-232 or RS-485 full/half duplex
- CAN bus with CAN-FD capability
- 2 x GPI (isolated digital input)
- 2 x GPO (isolated digital output)
TPM
Trusted Platform Module
TPM 2.0 on a discrete module
Power input
9V to 36V DC power input
25W to 120W nominal
B2B Benefits
- Direct support from the product’s hardware, software and mechanical engineers
- Extended services – OEM branding, hardware and software customisation, software imaging
- Product life-cycle management – revision freezing, advanced notice on engineering changes, stocking of EOL components
- Risk-free evaluation – Order for testing during an evaluation period of up to 45 days. If the product is unsatisfactory, return it for a full refund (subject to condition of device and excluding storage devices, OS license, and shipping costs).
